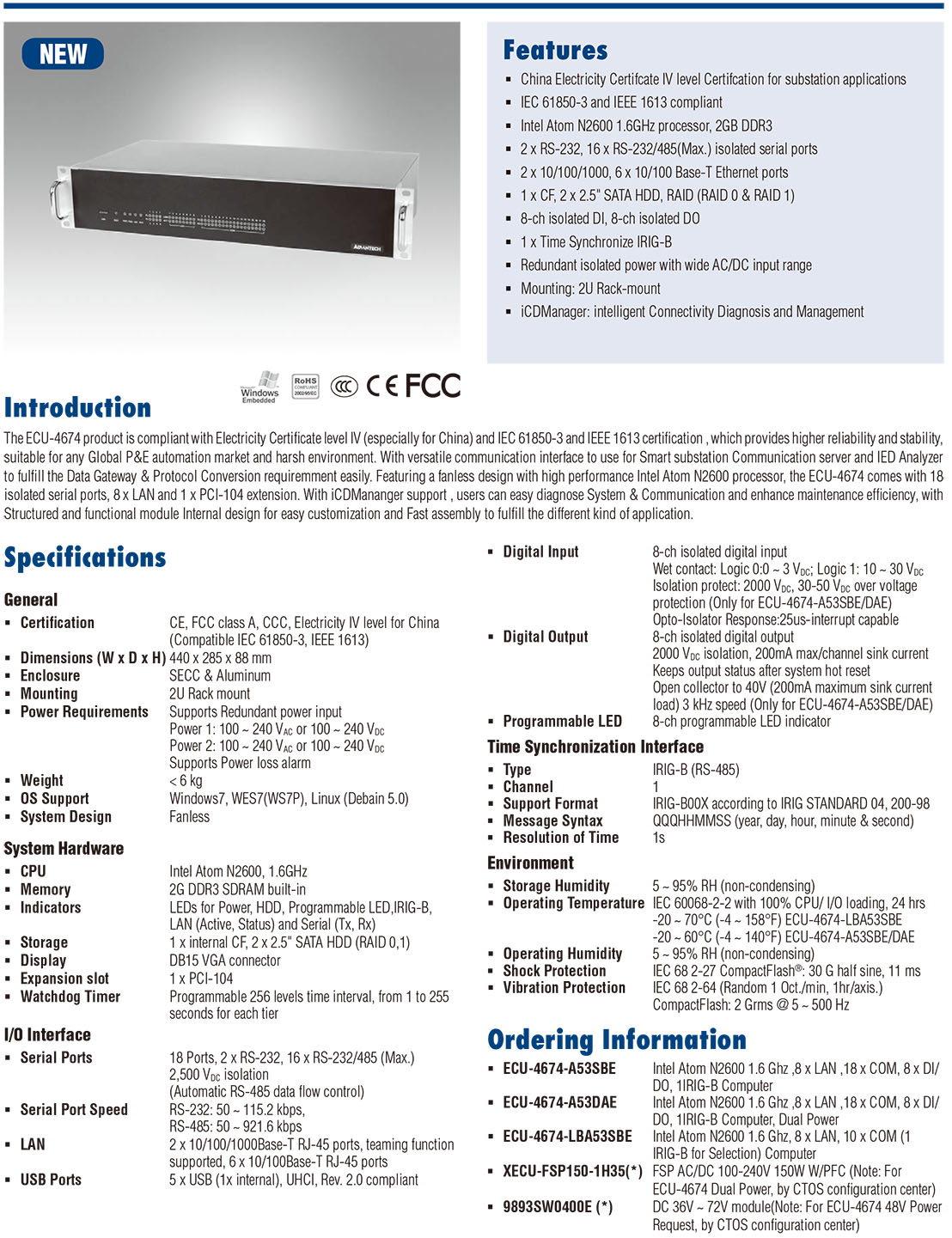

ECU-4674

• •适用于变电站应用的中国电力IV级认证

• •IEC 61850-3和IEEE1613认证

• •Intel® Atom™ N2600 1.6 GHz CPU

• •2 GB DDR3 2 x RS-232，16 x RS-232/485(Max)串口

• •2 x 10/100/1000、6 x 10/100 Base-T网口

• •1 x CF、2 x 2.5 "SATA HDD、RAID(RAID 0和RAID 1)

• •8 DI、8DO

• •1路时间同步IRIG-B

• •可选双AC/DC输入隔离电源

• •安装：2U机架式安装

• •iCDManager：智能连接诊断和管理

• ---

  • China Power Class IV certification for substation applications

• • IEC 61850-3 and IEEE1613 certification

• • Intel® Atom ™ N2600 1.6 GHz CPU

• • 2 GB DDR3 2 x RS-232, 16 x RS-232 / 485 (Max) serial ports

• • 2 x 10/100/1000, 6 x 10/100 Base-T network ports

• • 1 x CF, 2 x 2.5 "SATA HDD, RAID (RAID 0 and RAID 1)

• • 8 DI, 8DO

• • 1 channel time synchronization IRIG-B

• • Optional dual AC / DC input isolated power supply

• • Installation: 2U rack mount

• • iCDManager: Intelligent connection diagnostics and management
