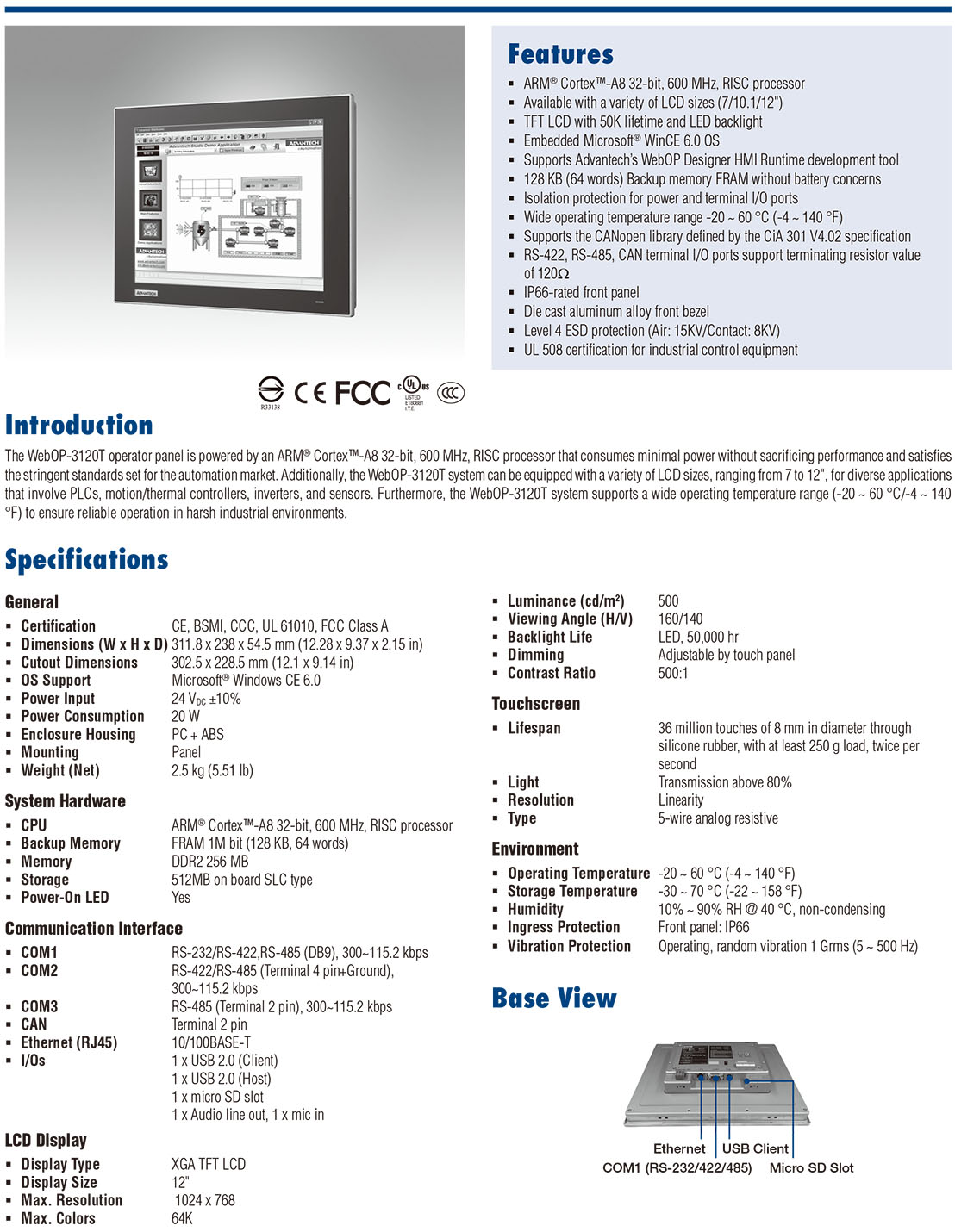

WebOP-3120T

• 采用RISC 32 bits TI ARM® Cortex™-A8处理器

• 多尺寸 LCD (7", 10.1", 12")

• LED背光模组液晶显示屏（LCD）,寿命可长达5万小时

• 内置嵌入式微软WinCE 6.0操作系统

• 提供128KB(64 位)电池备份闪存

• 电源和终端I/O接口配备了隔离保护措施

• -20°C ~ 60°C宽操作温度设计

• 通过CiA协会认可，内含建构在CiA V301 V4.02规范下的CANOpen数据库

• RS-422/RS-485/CAN终端I/O串口支持120Ω终端电阻

• 前面板IP66防护等级

• 压铸铝合金面板

• Level 4 ESD 保护 (Air:15KV / Contact:8KV)

• 通过 UL61010 认证

• ---

  Using RISC 32 bits TI ARM® Cortex ™ -A8 processor

• Multi-size LCD (7 ", 10.1", 12 ")

• LED backlight module liquid crystal display (LCD), with a lifetime of up to 50,000 hours

• Built-in embedded Microsoft WinCE 6.0 operating system

• Provides 128KB (64-bit) battery backup flash

• Power and terminal I / O interfaces are equipped with isolation protection

• -20 ° C ~ 60 ° C wide operating temperature design

• Approved by the CiA Association, including the CANOpen database built under the CiA V301 V4.02 specification

• RS-422 / RS-485 / CAN terminal I / O serial port supports 120Ω terminal resistance

• Front panel IP66 protection

• Die-cast aluminum alloy panel

• Level 4 ESD protection (Air: 15KV / Contact: 8KV)

• UL61010 certified

•

•
